EZ VSM

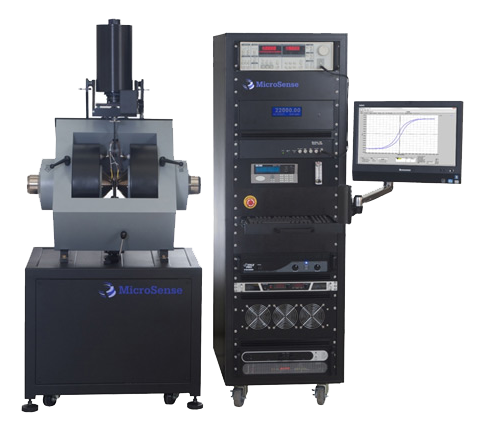

MicroSense Vibrating Sample Magnetometers (VSMs) are the easiest to use and most sensitive vibrating sample magnetometers available. Whether you are measuring magnetic moment and coercivity of thin films or studying the magnetic properties of liquids, powders, or bulk samples, the MicroSense VSMs will give you the easiest and most accurate magnetic measurements.

Learn More

Features of the EZ VSMs

    • 0.75 x 10-7 emu noise at room temperature
    • 5 x 10-7 emu noise at temperature is at least 2.5 times lower than noise of competing systems
    • 10 mm ID of continuous range temperature chamber allows for larger samples and 2.5 times more signal than competing 7.1 mm ID temperature

Chamber

  • > 2.5 times lower noise and > 6x higher signal to noise ratio than competing VSMs (when used with temperature option)
  • Fields to > 3.2 Tesla, fields > 2.7 Tesla with medium sized EZ9, > 2.25 Tesla with EZ9 and temperature option
  • Lowest field noise: less than 5 mOe RMS is > 10 times lower than the field noise of competing systems
  • Temperature options from 4.2K to 1050K
  • Automatic Sample Rotation standard
  • Vector option with 5 x 10-7 emu noise is 10 times more sensitive than competing systems and EZ9 system with vector option in place can achieve a maximum field of 2.25 Tesla, 1 Tesla higher than some similar sized systems
  • 3 systems in one: VSM, Torque and Magneto Resistance
  • Fast and Easy to use with oven/cryostat always installed on the measurement system and ready for use
  • Air Cooled Magnet Power Supply
  • Space saving, flexible design with all components mounted on wheels for easy lab reconfiguration
